Zurn Model ZEM-6152XL flush valve is a sensor activated WC flushing valve with an approved vacuum breaker allowing direct connection to potable water supply without any additional backflow protection. The standard valve is pre-set to deliver a 6L flush and has achieved the distinction of Australian Standards Watermark approval and WELS 1 Star rating. Valve upgradable to 4.5L flushing should regulations permit.
Sensor initiates full flush only after user is within sensor range for more than 8 seconds and then leaves sensor range. Valve is also available with auxiliary manual push button.
Pipework design is critical to correct valve operation and must be completed by a suitably qualified person.
Mount valve in a appropriately sized duct space (see drawing above). Optional stainless steel access panels available should full duct access not be available. Sensor supplied with 6VDC plug pack transformer.
Flow rings supplied with the valve allow the installer to increase the flush volume to either 9 or 12 litres if required. This can be useful when older pans or Asian squat toilets are installed (WELS 0 Star rated).
In order to comply with approvals is not possible to remote mount this valve and extend any pipework.
The product must be specified and ordered in 2 parts.
- 1st fix valve set ref ZEM-6152XL - also available in a non potable format ref ZEM-6152L-40

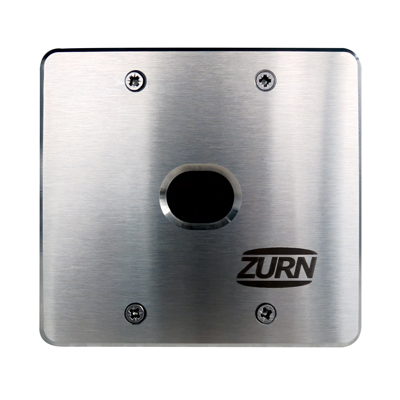

- 2nd fix sensor plate or access panel
Refer to Tech Data sheet for details.
