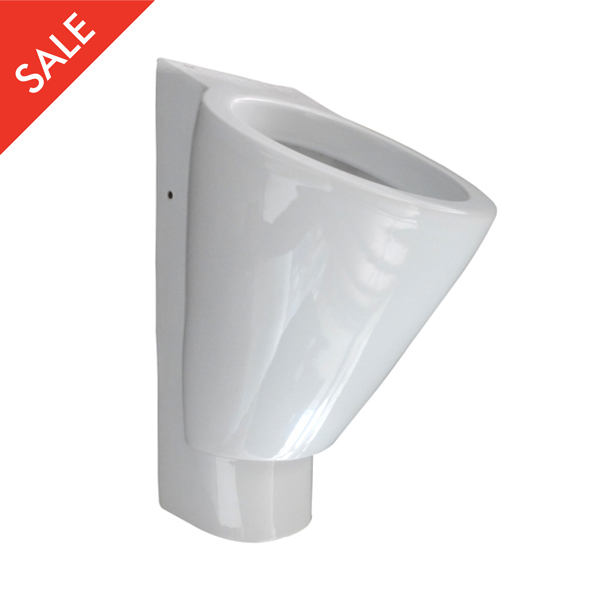

RAK Sheno Wall Hung Urinal

The Sheno urinal has a distinctive design, perfect for compact bathrooms both for commercial and residential applications.

The Sheno urinal is ideally suited to healthcare facilities or residential applications. The Sheno urinal has a rear inlet and has a rear outlet for concealed trap.

Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.

Colour: Alpine white only.
Inlet connection: ½" BSP inlet connection included.
Waste outlet: Waste trap included. Plumber to install Ø50 waste (socket end to urinal) pipe in wall.
Lid: Sheno lid available as option.
Water pressure range: 100-500kPa.
Fixings: FS37UK wall fixing kit included.

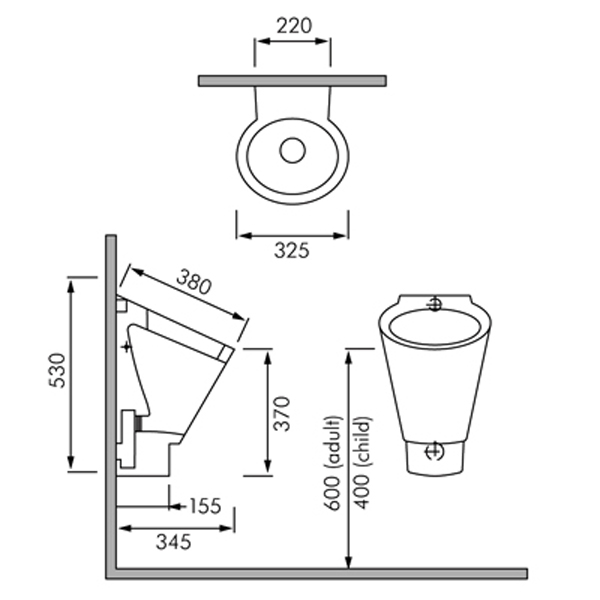

Dimensions: All dimensions in mm. Tolerance 5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our Delabie and RAK flushing valves.

17x AVAILABLE
