RAK Compact Accessible Wall Hung Toilet Pan
Product Code:
RA-CO1345
Product Enquiry
To prevent automated spam submissions leave this field empty.

Tabs

Overview

The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs. Apart from its broad dimensions, Compact accessible toilets come with Rimless technology which delivers the ultimate in hygienic bathrooms. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.

Compact accessible is available in wall faced toilet suite, wall faced toilet pan or wall hung toilet pan (as shown) format.

Note: There is 10mm difference in height between the RA-CO1344 and RA-CO1345. The inwall support bracket should be adjusted to ensure the WC height meets the appropriate Standard.

Colour: Alpine white only.
Trap type: P-trap outlet connection.
Inlet: Ø55mm inlet connection.
Fixing: GL08K fixing kit. (Fixed to wall using RAK inwall bracket model RA-WHB-UNI when using Zurn flush valve or Wisa inwall frame when using Wisa inwall cistern WS2701, order separately. DO NOT use WS2104 inwall cistern).
Seat: Compact urea soft-close toilet seat & lid, also available with toilet seat without lid.

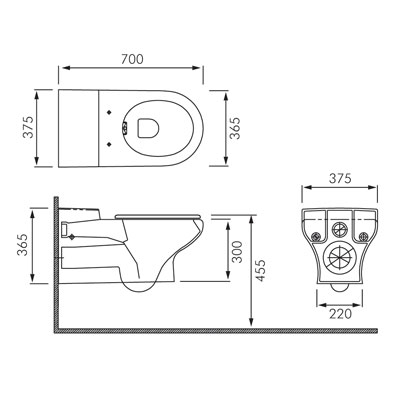

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our Zurn flushing valves and Wisa inwall cisterns.
